KT4 - Kat's latest high performance digital drum set
The next level of e-drums from KAT®

With its expanded sound library and sophisticated new feature set, the KT4 is KAT Percussion's most advanced digital drum set to date. The KT4 is a 5-piece kit that features new high-end, professional quality drum and cymbal sounds percussion samples integrated into its built-in library of 780 sounds.

More "drummer appeal" than ever
KAT has taken its already proven technology, made numerous refinements and several major advancements that give the kt4 an ever greater "drum set feel" to satisfy the player who may have previously been hesitant about playing an electronic drum set.

For a natural feeling response and real bass drum punch, KAT has developed an all-new bass drum kick tower that features an 8-inch Bass Pad fitted with a Mylar® drumhead, perfect for single or double pedal players. The four rack mounted drums are KAT's ultra-responsive, 11-inch, dual-zone white drum pads. The kt4 can also be expanded to include one additional drum pad, making it a six-piece kit.

A better cymbal is here
The kt4 is the first KAT drum set to feature a real-time actuating, movable, three-zone, 12-inch hi-hat cymbal pad to give you more control over your sound than ever before. Included with the kt4 is the DW3500 Hi-Hat Stand from Drum Workshop. The kit's two choke-able 12-inch crash cymbals and extra-large 14-inch ride cymbal also have three programmable zones-bell, bow and edge for more robust and realistic playing.





Sound Module Connectivity Advanced Drum Pads
and Cymbals
Easy Set-Up
  • 780 studio-grade drum, cymbal, DJ, EFX and percussion sounds

  • 99 total drum kits, including 55 pre-programmed kits and 44 user-programmable drum sets

  • Fully programmable voice controls, including panning, individual pitch adjustment, reverb, decay, pad sensitivity control, curves, individual voice volume, midi note assignment, four-band EQ and more

  • Integrated sequencer and tempo adjustment for recording

  • 142 built-in play along tracks

  • Integrated 7-track sequencer for recording

  • Built-in Click Track

  • Touch button panel for editing and reviewing sounds without striking kit pads

  • Programmable 30-60 minute auto-power shutoff

  • Built-in general MIDI sound card produces high-quality play-along tracks
  • USB 3.0 compatible and MIDI input/output for recording and playback with computer software on PC or Mac

  • 1/8-inch audio input jack to connect a CD player, MP3 player, smartphone or tablet

  • Two (2) 1/4-inch output jacks plug into a PA system or console for studio recording or live performances

  • 1/4-inch stereo output jack for headphones or in-ear monitors

  • Input expansion jack for additional drum pad (pad pack sold separately)

  • SD card slot for loading MIDI files and backing up custom user kits
  • Five-piece kit with 11-inch white, dual zone drum pads

  • Ultra-sensitive pads for natural dynamic tracking

  • Extremely quiet pads and cymbals with a natural stick rebound and feel

  • Double pedal compatible kick tower with 8-inch non-slip bass drum kick tower with white Mylar® drum head

  • Three fully-adjustable hideaway cymbal boom arms for flexible cymbal positioning

  • Hi-hat, crash and ride cymbal pads feature three independently-programmable playable zones (bell, bow and edge)

  • Silent Strike bass drum beater included for ultra-quiet playing

  • Stylish and stable curved chrome rack with heavy-duty clamps for secure and precise pad positioning

  • Pre-positioned rack clamps allow quick and easy setup

  • Pre-labeled, one-piece cable harness

  • Velcro® ties keep cables neat and organized

  • 16-inch floor L-rod tom arm offers a wide range of height adjustment

  • Non-slip spurs and Velcro® grip keep the bass drum kick tower in place




Kit Configuration
  Snare: 11" Dual zone pad
  Tom1 - Tom3: 11" Dual zone pad
  Opt - Tom4: 9" or 11" Dual zone pad - Sold Separately
  Bass Drum: 8" Single zone mylar headed pad mounted onto tower support structure
  Crash1 & 2: 12" Three zone cymbal w/choke
  Ride: 14" Three zone cymbal w/ choke
  Hi-Hat: 12" Three zone cymbal + Actuating Sensor
Tone Generator
  Maximum Polyphony: 64
  Drum Kits: 99 (55 preset kits + 44 user kits)
  General MIDI Kits: 9 GM Kits
  Drum Instruments: 780 (Drums, Percussion, SFX) 18 Hi-Hat Combos
  Effects: Plate, Small, Medium, Large, Hall 1, Hall 2, Delay x2, 4-Band Equalizer
Connectors
  9 Trigger Input Jack, Headphone Jack (1/4" stereo), Aux. In jack (1/8" stereo), 2 External Trigger Input Jack, (1/4", Tom4, Crash2),
Output (1/4", L/Mono, R), USB 3.0 compatible, MIDI In, MIDI Out
Control Buttons
  Power On/Off Page +/ -
  Part Mute Save/ Enter
  Menu Exit
  Mixer Card
  Click Kit
  Record Utility
  Play/Stop Song
  Tempo +/- 12 Pad Select Buttons
Sequencer
  Preset Pattern: 142
  User Song 100
  7-Part Sequencer Part 1 - Drums, Part 2 - Percussion
Part 3-7 User Selected GM Sounds
  Resolution 192 Ticks per quarter note
  Recording Method Real-time
  Maximum Note Storage: Approx. 84,000 notes
  Tempo: 30~280
  Display: Backlit Segment LCD
Other
  SD Card: Save/ Load kit, song and user setting
Play back MIDI song (maximum 16 tracks)
  Power Supply: DC 9V, 500mA
  Carton Dimensions: 940(W) x 640(H) x 250(D) mm , 985(W) x 510(H) x 340(D)
  Total Package Weight: 19kg, 25kg


* All specifications and appearances are subject to change without notice.





Latest High Performance Digital Drum Set

Contents:

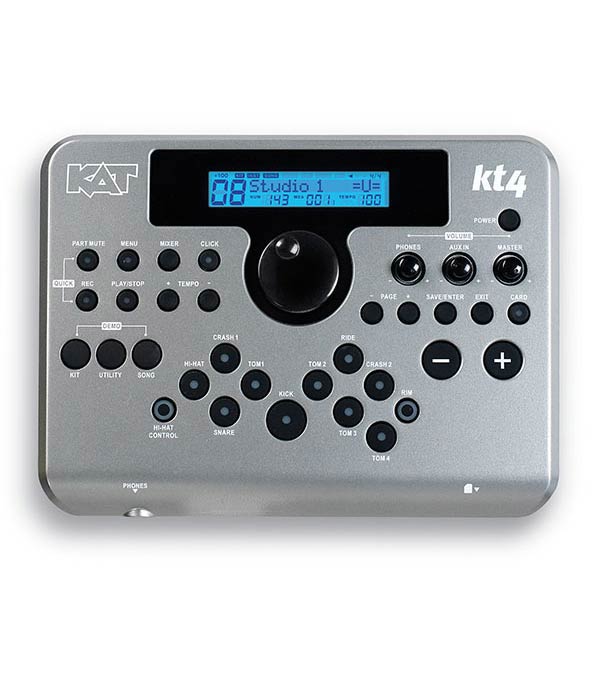

• KT4 USB/MIDI Trigger Sound Module with rack mount bracket
• 11-inch dual-zone snare pad
• Three (3) 11-inch dual zone tom pads
• Shock-absorbing, non-slip Bass Drum Kick Tower with
  8-inch Pad with Mylar® head
• Real-time continuous controller hi-hat actuator
• Two (2) 12-inch, triple zone crash cymbals
• 14-inch, triple zone ride cymbal
• 12-inch, triple zone hi-hat cymbal
• Three (3) boom cymbal arms
• Drum Workshop® DW3500 Hi-Hat Stand
• Curved chrome drum rack with heavy-duty black metal clamps
• Silent Strike bass drum beater
• Multi-pin cable harness
• 8-foot stereo trigger cable for second crash cymbal connection
• Pair of drumsticks
• Drum key
• Eight (8) Velcro® cable ties
• SD Card included
• Assembly instructions
• Manual and Setup Guide included







    KT4-9PTAC
KAT 9" White Dual Zone Pad w/ Tom Arm, Clamp, 8ft Cable, and Velcro Tie


The KT4-9PTAC is a 9" add-on pad for the KAT kt4 drum kit. This dual zone pad with a raised rim provides versatility and rim shot triggering. This makes a great upgrade to your KAT kt4 drum kit. The pad also works with most major brands of piezo based drum modules. Ultra sensitive response and wide playing area make playing easier and more natural. The white pad surface stays looking new after repeated playing and is easy to keep clean. Included with the pad is a boom arm, 9.5mm L-Rod, Black metal rack clamp, 8ft TRS cable, and Velcro tie.




    KT4-11PTAC
KAT 11" White Dual Zone Pad w/ Tom Arm, Clamp, 8ft Cable, and Velcro Tie


The KT4-11PTAC is a 11" add-on pad for the KAT kt4 drum kit. This dual zone pad with a raised rim provides versatility and rim shot triggering. This makes a great upgrade to your KAT kt4 drum kit. The pad also works with most major brands of piezo based drum modules. Ultra sensitive response and wide playing area make playing easier and more natural. The white pad surface stays looking new after repeated playing and is easy to keep clean. Included with the pad is a boom arm, 9.5mm L-Rod, Black metal rack clamp, 8ft TRS cable, and Velcro tie.





DOWNLOADS

Installation Instructions - READ THIS FIRST! DOWNLOAD

KT4 Firmware Update V1.1.0 DOWNLOAD
