KT3 - advanced, high performance digital drum set

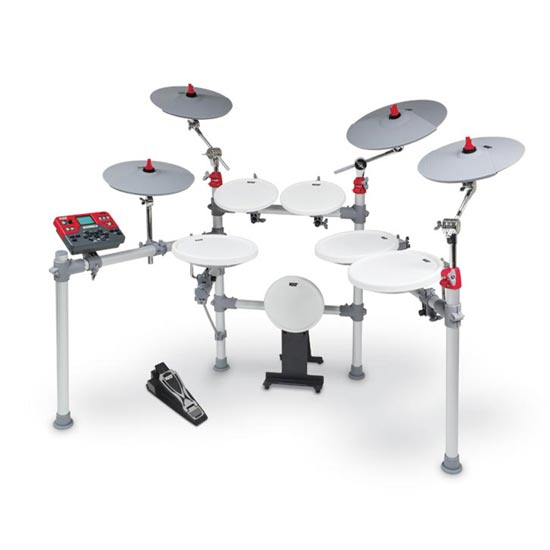

The new 6-piece kt3 digital drum set represents KAT's latest advancement in its "kt" drum series. This "big brother" edition of the widely acclaimed kt2 features large 11" white floor tom and snare drum pads, a larger 12" hi-hat cymbal, two 12" crash cymbals, a 14" ride cymbal with an all-new bell trigger and most importantly, a new library of amazing, high quality sounds.

The built-in general MIDI sound card includes a variety of play-along songs that are both fun and challenging to play. The sophisticated kt3 sound module includes 45 pre-configured drum sets, 25 user-programmable drum sets, 100 built-in play along songs, and 550 studio-quality drum, cymbal, DJ, EFX, and percussion sounds.

The kt3 module has as much connectivity as you have come to expect from a KAT kit. A pair of 1/4" stereo output jacks accommodate direct recording and mixer amplification. A stereo input jack allows you to plug in your mp3 player so you can play-along and practice to your favorite tunes.




Check out Canadian Musician's KT3 Magazine Review


USB Control Module Connectivity Playability Easy Set-Up
  • 550 Studio Grade Drum, Cymbal, DJ, EFX, and Percussion sounds

  • 70 Drum Kits, 45 Factory preset and 25 additional user kits

  • Full user programming options:
    - panning
    - individual voice pitch adjustment
    - reverb
    - pad sensitivity control
    - curves
    - individual voice volume
    - midi note assignment
    - 3-band EQ
    - Tempo adjust and more.

  • 100 built in play along tracks

  • Input for mp3 player, smartphone or tablet

  • USB/ MIDI connectivity

  • Learning mode for training and accuracy

  • Integrated sequencer for recording

  • Built-in Click Track

  • Touch button panel for editing and reviewing sounds without striking kit pads

  • Programmable, 30/60 minute auto-power shutoff

  • Built in general MIDI Sound Card provides great sounding play-along tracks
  • USB 2.0 / MIDI output for use with computer software for recording and playback

  • The 1/8 " audio input jack allows you to connect a CD player, MP3 player, smartphone or tablet, allowing you to play along with your favorite tunes.

  • Two (2) 1/4" output jacks conveniently plug into a PA system or console for studio recording or live performances.

  • 1/8" stereo output jack for your headphones or in-ear monitors for private playing.

  • Two (2) trigger input jacks for adding an additional drum pad and/ or cymbal (sold separately)
  • 6-piece kit with newly-designed 11" dual zone drum pads

  • Ultra-sensitive pads for natural dynamic tracking

  • Extremely quiet pads and cymbals with a natural stick rebound and feel

  • Double pedal compatible 9" bass drum tower

  • Three (3) fully adjustable cymbal boom arms for the ultimate in
    set-up flexibility

  • Larger cymbals than other drum sets in its class. Ride cymbal features a bell trigger

  • Independently-programmable, dual-zone crash and ride cymbals to double your kit's cymbal sounds

  • Silent Strike bass drum beater included

  • Pre-positioned rack clamps allow quick and easy setup

  • Feather-light, durable, non-slip rack includes snare brace to secure precise snare pad positioning

  • One-piece wire harness is pre-labled for easy setup

  • Matching Velcro® ties keep cables neat and organized

  • Brilliant new red accents give the kt3 a distinctive look

  • Bass Drum Pedal not included in models sold in North America




Kit Configuration
  Snare: 11" Dual zone pad
  Tom1 - Tom2: 9" Dual zone pad
  Tom3 - Tom4: 11" Dual zone pad
  Bass Drum: 9" Single zone pad mounted onto tower support structure
  Crash1 & 2: 12" Dual zone cymbal w/choke
  Ride: 14" Dual zone cymbal with Bell Trigger
  Hi-Hat: 12" Single zone cymbal no choke
Tone Generator
  Maximum Polyphony: 64
  Drum Kits: 70 (45 preset kits + 25 user kits)
  General MIDI Kits: 11 GM Kits
  Drum Instruments: 550 (Drums, Percussion, SFX) 23 Hi-Hat Combos
  Effects: Reverb, 3-Band Equalizer
Connectors
  9 Trigger Input Jack, Headphone Jack (1/8" stereo), Aux. In jack (1/8" stereo), 2 External Trigger Input Jack, (1/4", Tom4, Crash2),
Output (1/4", L/Mono, R), USB 2.0, MIDI In, MIDI Out
Control Buttons
  Power On/Off INC/DEC
  Volume Click
  Start/Stop Drum Off
  Save Record
  Song Tempo
  Kit Utility
  Voice Play/Practice
  Page/Select 12 Pad select Buttons
Sequencer
  Normal: Song 100
  Learning: Beat 20
Rhythm 12
Pattern 10
  Resolution: 120 Ticks per quarter note
  Recording Method: Real-time
  Maximum Note Storage: Approx. 1100 notes
  Tempo: 30~280
  Display: Backlit Segment LCD
Other
  Power Supply: DC 9V
  Carton Dimensions: 112(W) x 32(H) x 62(D) cm
  Total Package Weight: 33kg






advanced, high performance digital drum set

Contents:

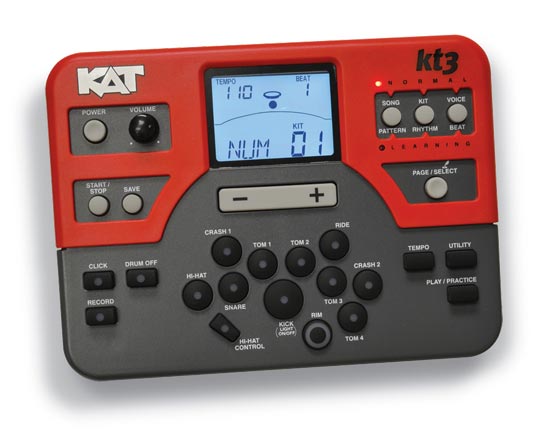

• KT3 USB/MIDI Trigger Sound Module
• 11" Dual-zone snare pad
• (2) 9" Dual Zone tom pads
• (2) 11" Dual Zone Floor Tom pads
• Shock absorption Kick Tower w/ 9" pad
• Hi-Hat Controller
• (2) 12" dual zone crash cymbals
• (1) 14" dual zone ride cymbal w/ bell trigger
• (1) 12" hi-hat cymbal
• (3) Boom cymbal arms
• (1) Straight hi-hat arm
• Drum rack w/ mounting hardware
• Silent Strike bass drum beater
• Multi-pin cable harness
• (2) 8' stereo trigger cables
• (1) Pair of drumsticks
• Drum key
• (5) Velcro cable ties
• Assembly Instructions
• User Manual








    KT2EP4

KAT Drum Throne, Kick Drum Pedal, and Headphones Expansion Pack

The KT2EP4 Expansion Pack gives you all the items you'll want to add to start fully enjoying your KAT digital drum kit. These accessories work with both the KAT KT1 and KT2 Digital Drum Kits. The KTSP1 Kick Drum pedal features the KAT logo to match your Kat Hi-Hat controller and includes our "Silent Strike" bass drum beater. The drum throne is double braced and the stereo headphones are nicely padded for long playing sessions.

Click here for additional photos and specifications



    KTUI26

Ultra isolation headphones

Enjoy your own private musical space and block out unwanted external noise with KAT's new ktui26 Ultra Isolation Headphones. Designed especially for drummers, the ktui26's wide dynamic range and superior noise cancelling capabilities make it the ideal choice for private practicing and critical listening.

Click here for additional photos and specifications




KT3 - Advanced, High performance digital set drum
The big brother to the KT2 kit, the new KT3 kit has 550 sounds, 70 drum kits, and 100 built in play along songs.


KT3 - Mashup with Antoine Fadavi
Antoine Fadavi performs on the kt3 Digital Drum Set using: User Kit # 46, Hip-Hop / Percussion Kit #6, and Latin Kit # 4.
